Product Details

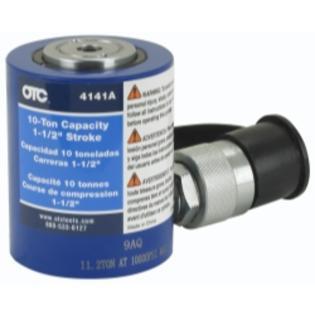

OTC4141A
10TON HYDRAULIC RAM SINGLE ACTING

OTC 4141A 10-Ton "Shorty" Rams, Single-Acting, Spring Return - Forcing a gravity return ram to retract wastes both time and money. This OTC series of single-acting, spring-return rams eliminates that waiting. With their low collapsed height and the stroke you really need, these rams are ideal for a variety of applications. You can choose from capacities of 10 to 100 tons and strokes from 1-1/2" to 2-7/16", with the largest ram being only 7-3/8" high. Bronze-plated piston rods resist scoring, and each ram can be “dead-ended” at full capacity for maximum safety. Each “Shorty” ram has an angled coupler port (5°) for easy hook-up. So, if you’re tired of waiting for your rams to retract, these OTC “Shorty” rams are just the answer to your problems. Capacity: 10-Ton Stroke: 1-1/2" Extended Height (A): 5" Retracted Height (B): 3-1/2" Piston Rod Diameter (C): 1-1/2" Outside Diameter (D): 2-3/4" Cylinder Effective Area: 2.24 cu. in. Oil Capacity: 3.4 cu. in. Internal Pressure at Capacity: 8,943 PSI Tons @ 10,000 PSI: 11.2 Oil Port Return: 3/8"-18 Type Piston NPTF: Spring
