Product Details

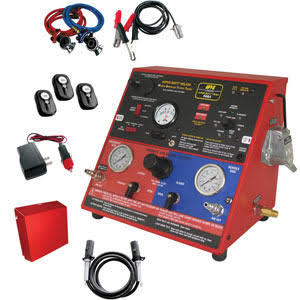

TLT9005A

Quickly Troubleshoot Lighting, Air Brake and ABS Systems with the Industry’s Leading Mobile Universal Trailer Tester Head - This intuitive and durable design is ideal for both on and off-site trailer testing and repairs on emergency vehicles. - Features and Benefits: ELECTRICAL TESTING(12/24 Volt Operation) - Power lights: Manually, all-on, auto scan, or by remote control - Audible and visual alerts: cross, open, overloaded and short circuit indication - Pulsar® mode allows diagnostic repair - Advanced trailer wiring diagnostics - Amperage readout and range (0-20 amps) - Cable testing - Ground failure detection: differentiates between wire and chassis ground - ABS TESTING - Access ABS blink codes - Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems) - AIR BRAKE TESTING - Performs leak-down test on service and emergency lines - Remote control allows observation of slackers to measure and adjust pushrods - Real-time, repetitive brake activation to find developing problems and verify leaking servo cans - REMOTE CONTROL - 12-button and (2x) 3-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range - Sync multiple (12) remotes to one unit - INCLUDES: • 12-Button Remote Control (#MUT-RM12) • (2x) 3-Button Remote Controls (#MUT-RM3-9005A/8) • 5' 7-Way Cable (#7900K-1) • External Battery Connector with Eyelets (#9005A-5AS) • 8' Red Hose with Gladhands (#7900AP-8RD-AS) • 8' Blue Hose with Gladhands (7900AP-8BL-AS) • 500mA Battery Charger (#CHR0001) • Face/Battery Shield (#9008-4R)
